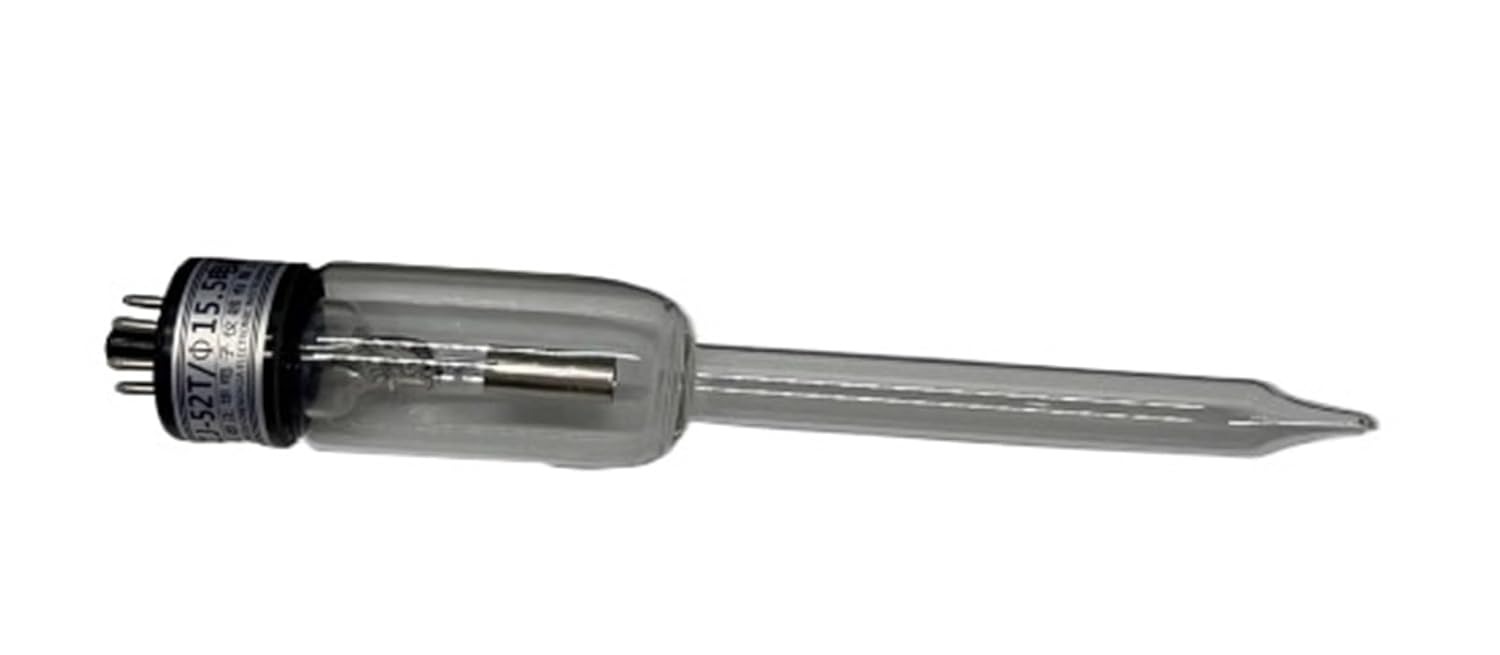

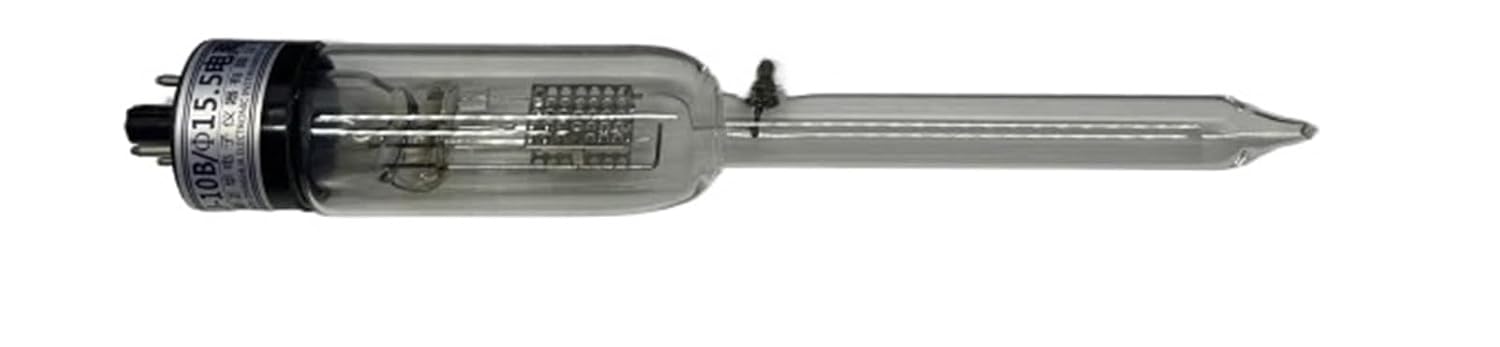

ZJ10B ZJ27 ionization Vacuum Gauge Tube Vacuum Accessories(Model 8)
Product details
| Management number | 210904273 | Release Date | 2026/04/04 | List Price | $40.13 | Model Number | 210904273 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Vacuum GaugesModel 1: ZJ-10B Glass 15.5Model 2: ZJ-27 Glass 15.5Model 3: ZJ-52T straight gold 15.5Model 4:ZJ-52TKF10/16Model 5:ZJ-52TKF25Model 6: ZJ-52T Glass 15.5Model 7: ZJ-54D Straight Gold 15.5Model 8:ZJ-54DKF10/16Model 9: ZJ-53B Glass 15.5ZJ-10B type vacuum cathode ionization gauge1. Measurement range: 65~3 × 10-4Pa2. X-ray limit: 3 × 10-4Pa3. Regulatory sensitivity: 0.015 ± 15% Pa-14. Working parameters:Filament voltage 1.3VFilament current 2.5AFilament to ground potential 50VGate to ground potential 165VGate current (emission current) 0.05/0.5mACollect electrode to ground potential 0V5. Electron bombardment (E.B) degassing:Gate voltage 300VDeaeration current 20mA6. Vacuum connection form and baking temperature:Glass with a diameter of 15.5 ± 0.5 and a temperature of 80 15.5 ± 0.1 metal at 80 KF10/16 quick release flange at 80 KF25 quick release flange at 80 KF40 quick release flange at 80 CF16 ultra-high flange 450 CF25 ultra-high flange 450 CF35 ultra-high flange 450 Cathode to ground potential 50 volts ± 4%Ion collection electrode to ground potential 0 voltsEmission current of 50-500 microamperesJide Qi rate: Surge voltage 350mA, bombardment current 35mASensitivity 27 Pa ± 15% * (for dry air)
- Vacuum Gauges
- ZJ10B ZJ27 ionization vacuum gauge tube vacuum accessories
| Brand Name | сYKKxBKGM |
|---|---|
| Manufacturer | сYKKxBKGM |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
